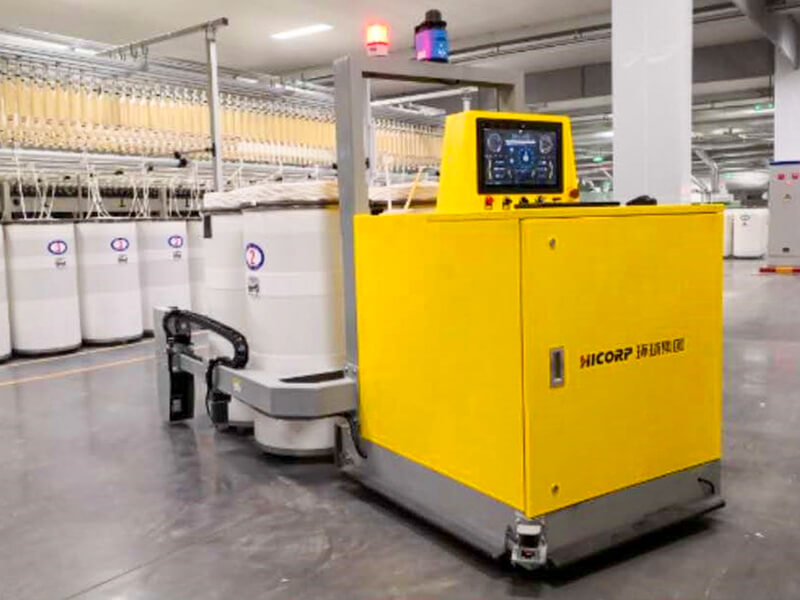

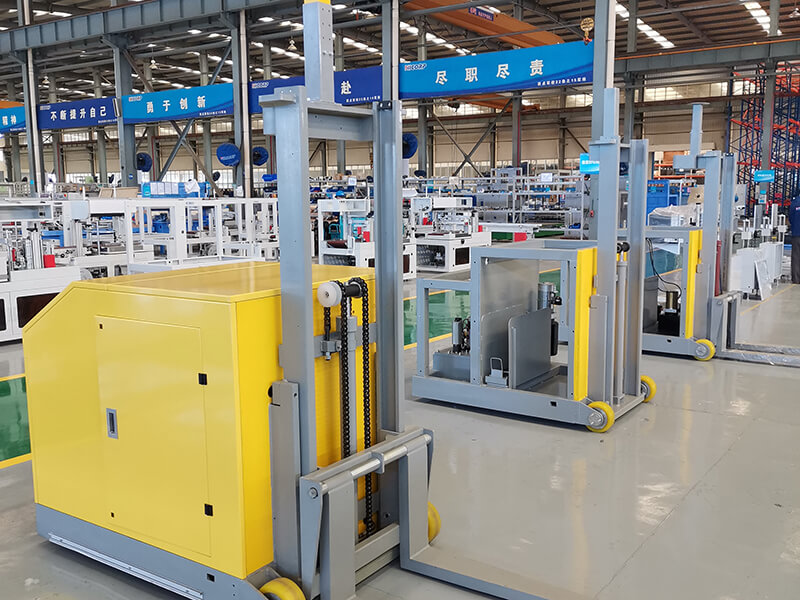

Automatic guide vehicle is used to turn over whole stack of cone. Laser navigation, with three-level safety automatic guiding function, the navigation and positioning accuracy can reach +/ -10mm.
| 1 | Model&specification | HR-01 |
| 2 | Move and load mode | Front |
| 3 | Oversize(LxWxH) | 1600x800x1800(mm) |
| 4 | Weight (without battery) | 500Kg |
| 5 | Battery | 24V/210AH |
| 6 | Rated handling weight | 150Kg |
| 7 | Minimum radius of gyration | 1200mm |
| 8 | Lifting way | By electric lifting |
| 9 | Lifting speed | 0.4m/min |
| 10 | Drive mode and steering mode | Rudder wheel |
| 11 | Moving Speed | 0-50m/min |
| 12 | Moving motor | Model | AC 24V |
| Rate | 1.5 kW |
| 13 | Turning motor | Model | AC 24V |
| Rate | 300W |
| 14 | Positioning accuracy | ±10mm |
| 15 | Ground Clearance height | 30mm |
| 16 | Guiding through | Laser guidance |
